UV LEDS

UVC

Luminus UV-C LEDs are highly efficient, have compact form factors and enable applications such as healthcare disinfection, water and air purification, and surface disinfection of consumer appliances.

ULTRAVIOLET PRODUCT BRIEF

For more information on the 308 nm and 340 nm please email sales@luminus.com. Products will be released in January 2024.

ecosystem WHERE TO BUY

UVC APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation

UVC FEATURES

  • Wavelengths ranging from 260-280 nm.
  • Wide range of power outputs from 3 mW to 480 mW.
  • Narrow (60⁰) and wide (130⁰) viewing angle packages for directional applications and flood exposure.

UVC Benefits

  • Extensive range of power options to address a wide variety of applications- from surface disinfection to water and air flow applications.
  • Highly reliability, low thermal resistance packages enable drive currents up to 800 mA max.
  • Standard surface mount packages for easy integration

UVC PRODUCT SELECTOR GUIDE

Download UVC LEDs for Disinfection and Sterilization

Product Image Product Family Peak Wavelength Package Max Drive
Current		 Optical Power at
Max Drive Current		 Downloads Status
XBT-1313-Gen2 270 - 280 nm SMT
1.3 mm x 1.3 mm		 100 mA 10 mW to 20 mW Datasheet

Ecosystem 		Active

XBT-1313-UV LEDs

Features

  • Latest generation XBT-1313 LED with improved packaging technology enables higher than 10 mW
  • Emission wavelength between 270 nm and 280 nm
  • Ultra-compact form factor: 1.3 mm x 1.3 mm
  • Wide viewing angle of 150 degrees
  • High reliability package with ESD protection
  • Standard SMD Process• RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XBT-3535-Mini 270 - 280 nm SMT
3.5 mm x 3.5 mm		 225 mA 30 mW to 35 mW Datasheet

Ecosystem 		Active

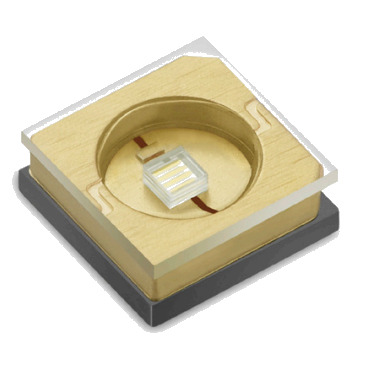

XBT-3535-Mini

Features

  • UV LED with peak wavelength 275 nm
  • 30 mW power output at max rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMT process

APPLICATIONS

  • Water/ Air/ Surface Disinfection
  • Healthcare
  • Food & Pharmaceutical Processing
  • Analytical Instruments
  • Horticulture
XBT-3535-Gen2 260 - 270 nm SMT
3.5 mm x 3.5 mm		 800 mA 90 mW to 100 mW Datasheet

Ecosystem 		Active
270 - 280 nm 100 mW to 120 mW

XBT-3535-Gen2

Features

  • UV LED with peak wavelengths 265 nm and 275 nm
  • High Optical Power: Up to 135 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMT process

APPLICATIONS

  • Water/ Air/ Surface Disinfection
  • Healthcare
  • Food & Pharmaceutical Processing
  • Analytical Instruments
  • Horticulture
XBT-3535-Gen2 280 - 290 nm SMT
3.5 mm x 3.5 mm		 800 mA 120 mW to 135 mW Datasheet

Ecosystem 		Active

XBT-3535-Gen2

Features

  • UV LED with peak wavelength 280 - 290 nm
  • High Optical Power: Up to 135 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMT process

APPLICATIONS

  • Water/ Air/ Surface Disinfection
  • Healthcare
  • Food & Pharmaceutical Processing
  • Analytical Instruments
  • Horticulture
XST-3535 270 - 285 nm SMT
3.5 mm x 3.5 mm		 800 mA 80 mW to 110 mW Datasheet

Ecosystem 		Active

XST-3535 LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 100 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package
  • Narrow viewing angle of 60 degrees
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XBT-3535 270 - 285 nm SMT
3.5 mm x 3.5 mm		 800 mA 70 mW to 100 mW Datasheet

Ecosystem 		Not recommended for new design

XBT-3535 LEDs

Features

  • UVC LED with emission wavelength between 275 nm and 285 nm
  • High Optical Power: Up to 80 mW of UVC power at maximum rated current
  • Compact form factor: 3.5 mm x 3.5 mm package with optically transparent window
  • Viewing angle of 130 degrees
  • Standard SMD Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-ES 270 - 280 nm SMT
5.2 mm x 5.2 mm		 600 mA 175 mW to 280 mW Datasheet
 Active
XFM-5050-UV 2 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm		 800 mA 150 mW to 250 mW Datasheet

Ecosystem 		Active

XFM-5050-UV 2 Chip LEDs

Features

  • Ultra-high power UVC LED: >120 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide viewing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-UV 3 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm		 800 mA 250 mW to 350 mW Datasheet

Ecosystem 		Active

XFM-5050-UV 3 Chip LEDs

Features

  • Ultra-high power UVC LED: >180 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide veiwing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation
XFM-5050-UV 4 Chip 270 - 280 nm SMT
5.2 mm x 5.2 mm		 3200 mA 360 mW to 480 mW Datasheet

Ecosystem 		Active

XFM-5050-UV 4 Chip LEDs

Features

  • Ultra-high power UVC LED: >240 mW output power at 275 nm
  • Compact, cost effective 5050 package
  • Designed to maximize irradiance in high flow applications
  • Wide viewing angle >130 °
  • Standard SMT Process
  • RoHS and REACH compliant

APPLICATIONS

  • Air Purification
  • Water Purification
  • Surface Disinfection
  • Medical Device Sterilization
  • Appliance Sterilization
  • Food & Beverage Preparation

DESIGN FILES (UVC)

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro OPTIS/Speos Zemax
XBT-1313-UV-Gen2 XBT-1313-UV-Gen2_Mech
(11.9 KB) 		XBT-1313-UV-Gen2_ASAP
(95.2 MB) 		XBT-1313-UV-Gen2_LT
(95.2 MB) 		XBT-1313-UV-Gen2_TP
(95.2 MB) 		XBT-1313-UV-Gen2_Sp
(96.2 MB) 		XBT-1313-UV-Gen2_Zx
(95.2 MB)
XBT-3535 XBT-3535_Mech
(19.2 KB) 		XBT-3535_ASAP
(115.9 MB) 		XBT-3535_LT
(115.9 MB) 		XBT-3535_TP
(115.9 MB) 		XBT-3535_Sp
(117.6 MB) 		XBT-3535_Zx
(115.9 MB)
XFM-5050-ES XFM-5050-ES_Mech
(138.4 KB) 		XFM-5050-ES_ASAP
(121.4 MB) 		XFM-5050-ES_LT
(121.4 MB) 		XFM-5050-ES_TP
(121.4 MB) 		XFM-5050-ES_Sp
(N/A) 		XFM-5050-ES_Zx
(121.4 MB)
XFM-5050-2CHIP XFM-5050-2Chip_Mech
(60.9 KB) 		XFM-5050-2Chip_ASAP
(111.8 MB) 		XFM-5050-2Chip_LT
(111.8 MB) 		XFM-5050-2Chip_TP
(106.4 MB) 		XFM-5050-2Chip_Sp
(113.3 MB) 		XFM-5050-2Chip_Zx
(111.8 MB)
XFM-5050-3CHIP XFM-5050-3Chip_Mech
(87.6 KB) 		XFM-5050-3Chip_ASAP
(110.3 MB) 		XFM-5050-3Chip_LT
(110.3 MB) 		XFM-5050-3Chip_TP
(110.3 MB) 		XFM-5050-3Chip_Sp
(111.9 MB) 		XFM-5050-3Chip_Zx
(110.3 MB)
XFM-5050-4CHIP XFM-5050-4Chip_Mech
(105.9 KB) 		XFM-5050-4Chip_ASAP
(94.0 MB) 		XFM-5050-4Chip_LT
(94.0 MB) 		XFM-5050-4Chip_TP
(107.9 MB) 		XFM-5050-4Chip_Sp
(95.4 MB) 		XFM-5050-4Chip_Zx
(94.0 MB)
XST-3535 XST-3535_Mech
(11.6 KB) 		XST-3535_ASAP
(100.8 MB) 		XST-3535_LT
(100.8 MB) 		XST-3535_TP
(100.8 MB) 		XST-3535_Sp
(102.2 MB) 		XST-3535_Zx
(100.8 MB)

Documents

Related Documents for Download
Ultraviolet Product Brief
Luminus UV-C Application Brief
