Luminus : Horticulture LEDs

APPLICATIONS

Top lighting, inter lighting and multi-layer cultivation.
Urban farming
Agriculture lighting and algae growth lights

FEATURES

Extensive range of LED packages with excellent PPF and PPF/W values
High-power 3535 series offered in 90 and/or 130° viewing angle at 50% Iv
Low Thermal Resistance
Built-in ESD Protection
RoHS and REACh compliant

Overview

3535 packaging solution covering wavelengths from UV (365nm) to Far Red (730nm) for high power applications
Plant-specific spectrums in COB package
High PPF efficacy mid-power LEDs for cost-constrained horticulture fixtures

SST SERIES SELECTOR GUIDE

Product Image	Product	Color	Package	Max Drive Current	Optical Output	Links	Status
	SST-10-UV	365 nm	SMT 3.45 mm x 3.45 mm	1.0 A	0.7 W - 0.9 W	Ecosystem Datasheet	Active
		385 nm			0.9 W - 1.2 W
		395 nm			0.9 W - 1.2 W
		405 nm			0.8 W - 1.0 W
SST-10-UV LEDs Features High Power UV LED with Peak Wavelengths between 365-405nm Industry standard 3.5mmx3.5mm package 130° viewing angle at 50% Iv Low Thermal Resistance - 3.4 C/W Built-in ESD Protection APPLICATIONS Horticulture Curing Adhesives Inks Plastic Products
	SST-10-B	Blue (450 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	510 - 670 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-20-B	Blue (450 nm)	SMT 3.45 mm x 3.45 mm	3.0 A	630 - 830 mW (0.35 A)	Ecosystem Datasheet	Active

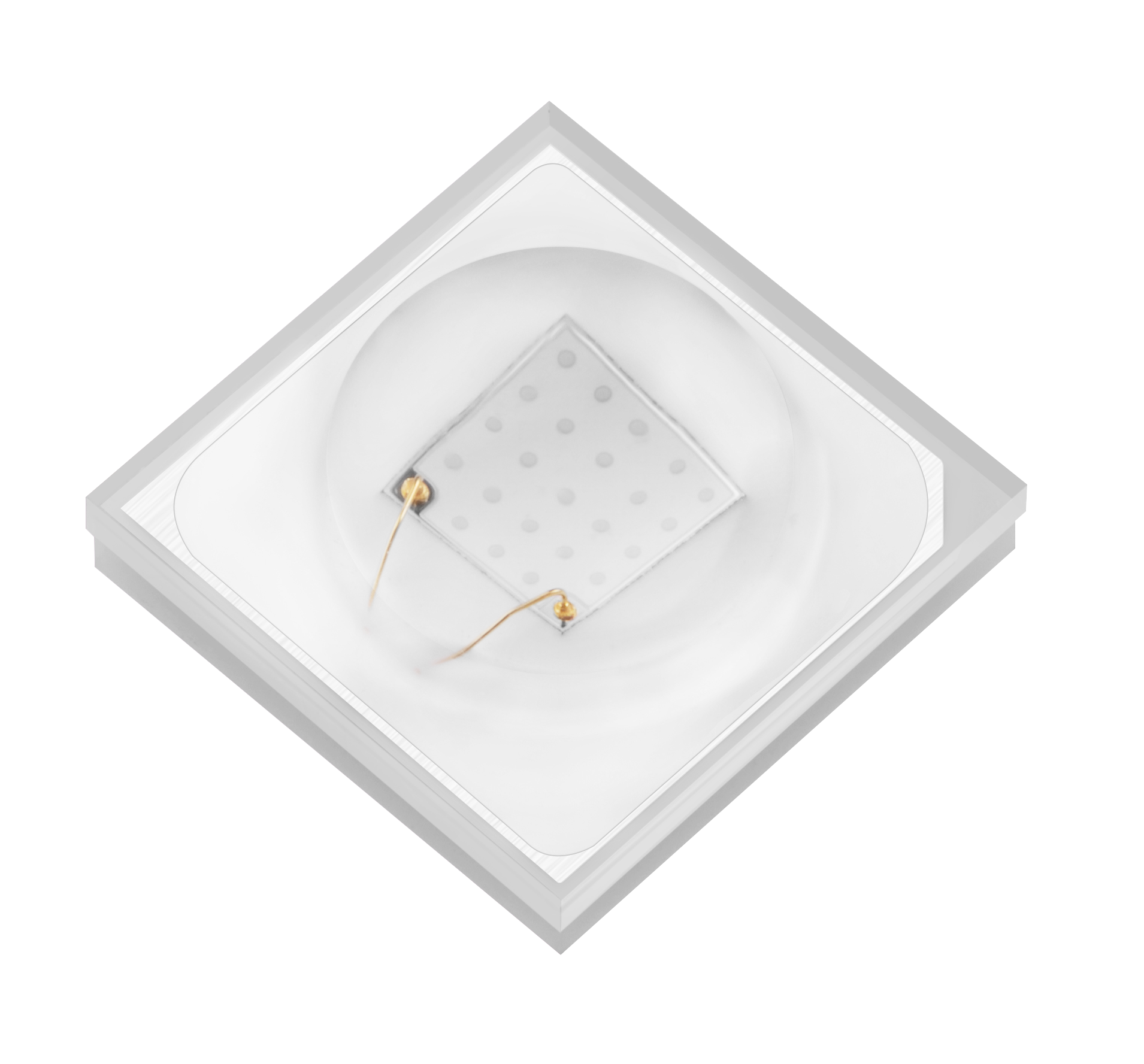

	SST-10-SB	Sky Blue (470 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	470 - 590 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-G	Green (527 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	190 - 350 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-R	Red (621 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	230 - 390 mW (0.35 A)	Ecosystem Datasheet	Active
	SST-10-DR	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 430 mW (0.35 A)	Ecosystem Datasheet	Active

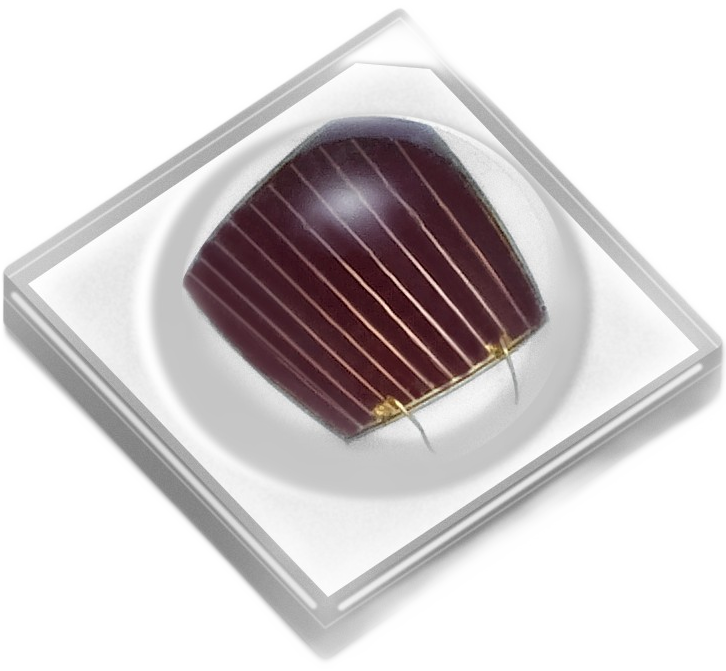

	SST-20-DR Gen 2	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	870 - 1070 mW (0.70 A)	Ecosystem Datasheet	Active
	SST-20-DR Gen 3	Deep Red (660 nm)	SMT 3.45 mm x 3.45 mm	2.0 A	990 - 1110 mW (0.70 A)	Ecosystem Datasheet	Active
	SST-10-FR	Far Red (730 nm)	SMT 3.45 mm x 3.45 mm	1.5 A	270 - 390 mW (0.35 A)	Ecosystem Datasheet	Active
	SFT-12R-WES-A	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	841 - 938 lm (3 A)	Ecosystem Datasheet	New Product

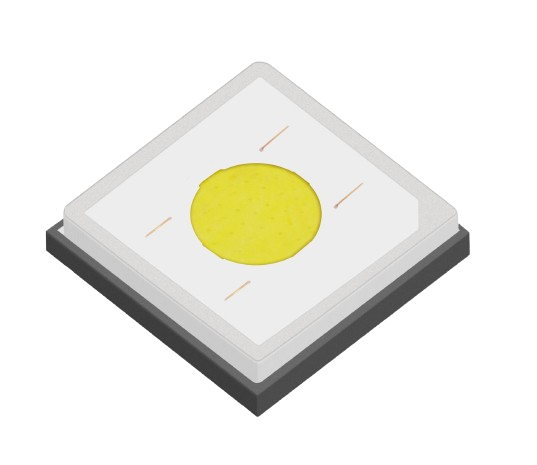

	SFT-25R-WES-A	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	7.5 A	1,934 - 2,156 lm (7.5 A)	Ecosystem Datasheet	New Product

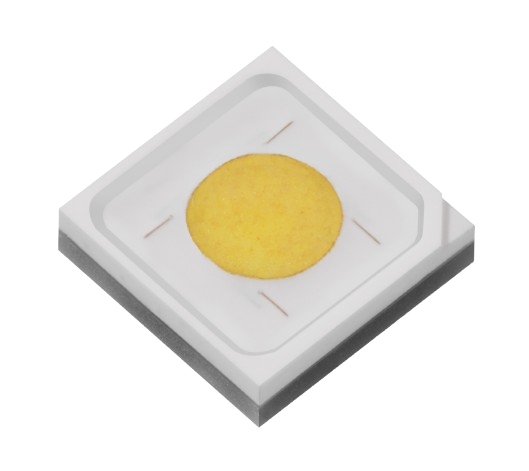

	SFT-40-WxH	White 2700K, 3000 K CRI 95	SMT 5.0 mm x 5.0 mm	4 A	774 - 905 lm (4 A)	Ecosystem Datasheet	New Product
	SFT-40-WES Gen 2	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	8 A	2,250 - 2,500 lm (3 A)	Ecosystem Datasheet	New Product
	SFT-40-WxS	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	8 A	2,128 - 2,411 lm (8 A)	Ecosystem Datasheet	Active
	SFT-70X-WxS	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	7 A (6 V) 3.5 A (12 V)	3,494 - 4,025 lm (7 A)	Ecosystem Datasheet	Active
	SST-12-WH Gen 2	White 2700 - 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	1.5 A	332 - 448 lm (1.5 A)	Ecosystem Datasheet	New Product
	SST-12-WS Gen 2	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	2.4 A	761 - 877 lm (2.4 A)	Ecosystem Datasheet	New Product
	SST-12-WxS	White 5000 - 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	2.4 A	700 - 797 lm (2.4 A)	Ecosystem Datasheet	Active
	SST-12-WxH	White 2700 - 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	1.5 A	324 - 395 lm (1.5 A)	Ecosystem Datasheet	Active
	SST-20-WE	White 4000 - 6500 K CRI > 70	SMT 3.45 mm x 3.45 mm	3 A	1,050 - 1,147 lm (3 A)	Ecosystem Datasheet	New Product
	SST-20-WF	White 3000 - 6500 K CRI > 80	SMT 3.45 mm x 3.45 mm	2 A	672 - 780 lm (2 A)	Ecosystem Datasheet	New Product
	SST-20-WG	White 4000 - 5700 K CRI > 90	SMT 3.45 mm x 3.45 mm	2 A	559 - 658 lm (2 A)	Ecosystem Datasheet	New Product
	SST-20-WH Gen 2	White 2700 - 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	2 A	468 - 621 lm (2 A)	Ecosystem Datasheet	New Product
	SST-20-WS Gen 2	White 5000 – 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	1,037 - 1,224 lm (3 A)	Ecosystem Datasheet	New Product
	SST-20-WxS	White 5000 – 6500 K CRI 70	SMT 3.45 mm x 3.45 mm	3 A	983 - 1,184 lm (3 A)	Ecosystem Datasheet	Active
SST-20-W Specialty White LEDs The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red. Features High Power White LED series in 3535 ceramic surface mount package Available in 5000K, 5700K and 6500K, 70 CRI typical with maximum output in excess of 900 lm at 3A Specified and binned at 85 °C Cool White typical efficacy of 180 lm/W at 350 mA, 85°C junction temperature Maximum drive current: 3 A DC Compact monolithic emitter ideal for directional lighting applications with high uniformity 120° viewing angle Available with 2 industry standard soldering footprint configurations High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001 Electrically isolated thermal path APPLICATIONS Horticulture grow lights Automotive after-market and tuning: light bars, spotlight, headlights Bicycle lights Battery and solar-powered lighting Industrial Lighting
	SST-20-WxH	White 2700 – 4000 K CRI 95	SMT 3.45 mm x 3.45 mm	2 A	426 - 554 lm (2 A)	Ecosystem Datasheet	Active
SST-20-W Specialty White LEDs The SST-20-W series are high brightness white LED suitable for operation up to 10W that excel in directional specialty applications requiring a combination of high efficacy and high lumen output. They complement Luminus' SST-10/SST-20 series of monochromatic LEDs spanning from Ultra-Violet to Infra-Red. Features High Power White LED series in 3535 ceramic surface mount package High CRI series : Available in 2700K, 3000K, 3500K and 4000K color points with 95 CRI Minimum Specified and binned at 85 °C Cool White Typical efficacy > 170 lm/W at 350 mA, 85°C junction temperature Maximum drive current: 3 A DC Compact monolithic emitter ideal for directional lighting applications with high uniformity 120° viewing angle Available with 2 industry standard soldering footprint configurations High thermal conductivity package - junction thermal resistance of only 3.5 ° C/W 8000V HBM ESD rating per JEDEC/ESDA STANDARD JS-001 Electrically isolated thermal path APPLICATIONS Horticulture grow lights Spot / tracklight Stage / Studio Lighting
	SST-25-WES	White 5000 - 6500 K CRI 70	SMT 3.55 mm x 3.55 mm	3.75 A	1,394 - 1,558 lm (3.75 A)	Datasheet	New Product

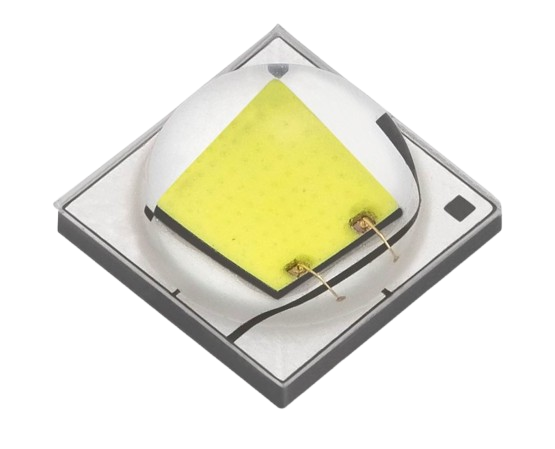

	SST-40-WS Gen 2	White 5000 - 6500 K CRI 70	SMT 5.0 mm x 5.0 mm	6 A	1,978 - 2,225 lm (6 A)	Ecosystem Datasheet	New Product

COB SERIES SELECTOR GUIDE

Product	Color	Package	Max Drive Current	Optical Output	Links	Status
CXM-14	Purple	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Ecosystem Datasheet	Active
CXM-14	Plant White	COB package 19 mm * 19 mm (AC) 14.3 mm LES	1,440 mA	40 ~ 72 (μmol/s)	Ecosystem Datasheet	Active
CLM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Ecosystem Datasheet	Active
CLM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	60 ~ 115 (μmol/s)	Ecosystem Datasheet	Active
CXM-22	Purple	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Ecosystem Datasheet	Active
CXM-22	Plant White	COB package 28 mm * 28 mm (AC) 22 mm LES	2,200 mA	90 ~ 165 (μmol/s)	Ecosystem Datasheet	Active
CXM-32	Plant White	COB package 38 mm * 38 mm (AC) 32 mm LES	4,400 mA	200 ~ 360 (μmol/s)	Ecosystem Datasheet	Active

SPECIALTY ILLUMINATION SERIES SELECTOR GUIDE

Package Platform	Voltage (V)	Current (mA)	Input Power (W)	TYP FLUX (lm), 3000k, 80CRI	TYP lm/W, 3000k, 80CRI	Downloads
NEW MP-3030-110H	2.8	65	0.182	33	181	Datasheet Ecosystem
NEW MP-3030-12ZH	2.67	65	0.173	33.5	193	Datasheet Ecosystem
NEW MP-3030-210H	6.0	150	0.9	140	156	Datasheet Ecosystem
MP-5050-8100	24	200	4.8	630	131	Datasheet Ecosystem
NEW CUBE-1616-1103	3.0	150	0.45	62	138	Datasheet Ecosystem
NEW CUBE-1616-2103	6.0	150	1.0	118	131	Datasheet Ecosystem

DESIGN FILES

PRODUCT	MECHANICAL MODEL	ASAP	LightTools	TracePro	Zemax
SST-10-B-B130	SST-10-B-B130_Mech (176.1 KB)	SST-10-B-B130_ASAP (134 MB)	SST-10-B-B130_LT (133.9 MB)	SST-10-B-B130_TP (167.2 MB)	SST-10-B-B130_Zx (133.9 MB)
SST-10-B-B90	SST-10-B-B90_Mech (66.4 KB)	SST-10-B-B90_ASAP (134.5 MB)	SST-10-B-B90_LT (134.4 MB)	SST-10-B-B90_TP (168.9 MB)	SST-10-B-B90_Zx (134.4 MB)
SST-10-DR-B130	SST-10-DR-B130_Mech (176.1 KB)	SST-10-DR-B130_ASAP (134.1 MB)	SST-10-DR-B130_LT (134.1 MB)	SST-10-DR-B130_TP (170.2 MB)	SST-10-DR-B130_Zx (134.1 MB)
SST-10-DR-B90	SST-10-DR-B90_Mech (66.4 KB)	SST-10-DR-B90_ASAP (134.8 MB)	SST-10-DR-B90_LT (134.7 MB)	SST-10-DR-B90_TP (171.4 MB)	SST-10-DR-B90_Zx (134.7 MB)
SST-10-FR-B130	SST-10-FR-B130_Mech (176.1 KB)	SST-10-FR-B130_ASAP (134.1 MB)	SST-10-FR-B130_LT (134 MB)	SST-10-FR-B130_TP (170 MB)	SST-10-FR-B130_Zx (134 MB)
SST-10-FR-B90	SST-10-FR-B90_Mech (66.4 KB)	SST-10-FR-B90_ASAP (134.6 MB)	SST-10-FR-B90_LT (134.5 MB)	SST-10-FR-B90_TP (171.1 MB)	SST-10-FR-B90_Zx (134.5 MB)
SST-10-SB-B130	SST-10-SB-B130_Mech (176.1 KB)	SST-10-SB-B130_ASAP (134 MB)	SST-10-SB-B130_LT (134 MB)	SST-10-SB-B130_TP (171 MB)	SST-10-SB-B130_Zx (134 MB)
SST-10-SB-B90	SST-10-SB-B90_Mech (66.4 KB)	SST-10-SB-B90_ASAP (134.5 MB)	SST-10-SB-B90_LT (134.5 MB)	SST-10-SB-B90_TP (172.8 MB)	SST-10-SB-B90_Zx (134.5 MB)
SST-10-UV-A130	SST-10-UV-A130_Mech (38.7 KB)	SST-10-UV-A130_ASAP (134 MB)	SST-10-UV-A130_LT (133.9 MB)	SST-10-UV-A130_TP (167.2 MB)	SST-10-UV-A130_Zx (133.9 MB)

Documents

Related Documents for Download
Horticulture Product Brief
HLB1 LED SPDs for Plant Growth
HLB2 Light Recipes for Plants

ILLUMINATION LEDs

SPECIALTY LEDs

Horticulture LEDS

APPLICATIONS

FEATURES

Overview

SST SERIES SELECTOR GUIDE

SST-10-UV LEDs

Features

APPLICATIONS

SST-20-W Specialty White LEDs

Features

APPLICATIONS

SST-20-W Specialty White LEDs

Features

APPLICATIONS

COB SERIES SELECTOR GUIDE

SPECIALTY ILLUMINATION SERIES SELECTOR GUIDE

DESIGN FILES

Documents
