COLOR LEDS

Monochromatic
SMD

High power LED chip in surface mounted package for small form factor designs.

ecosystem WHERE TO BUY

APPLICATIONS

  • Horticulture Lighting
  • Entertainment / Stage Lighting
  • Architectural Lighting
  • Industrial machine vision
  • Medical and Life Science
  • Projection Display

FEATURES

  • Individually packaged Red, Green and Blue colors of various wavelengths
  • Emission size ranging from 1.0 mm2 to 9.0 mm2
  • Low thermal resistance
  • Highest current density

Benefits

  • High brightness in single monolithic light source.
  • Surface Mount Device package form factor enable flexibility to size conscious designs.
  • SST series Blue and Deep Red ideal for Horticulture applications.
  • SFT- 10 / SFT-20 series RGB ideal for projection display applications.

PRODUCT SELECTOR GUIDE



Product Image Product Color / Peak Wavelength Package Max
Drive Current		 Optical Output Links Status

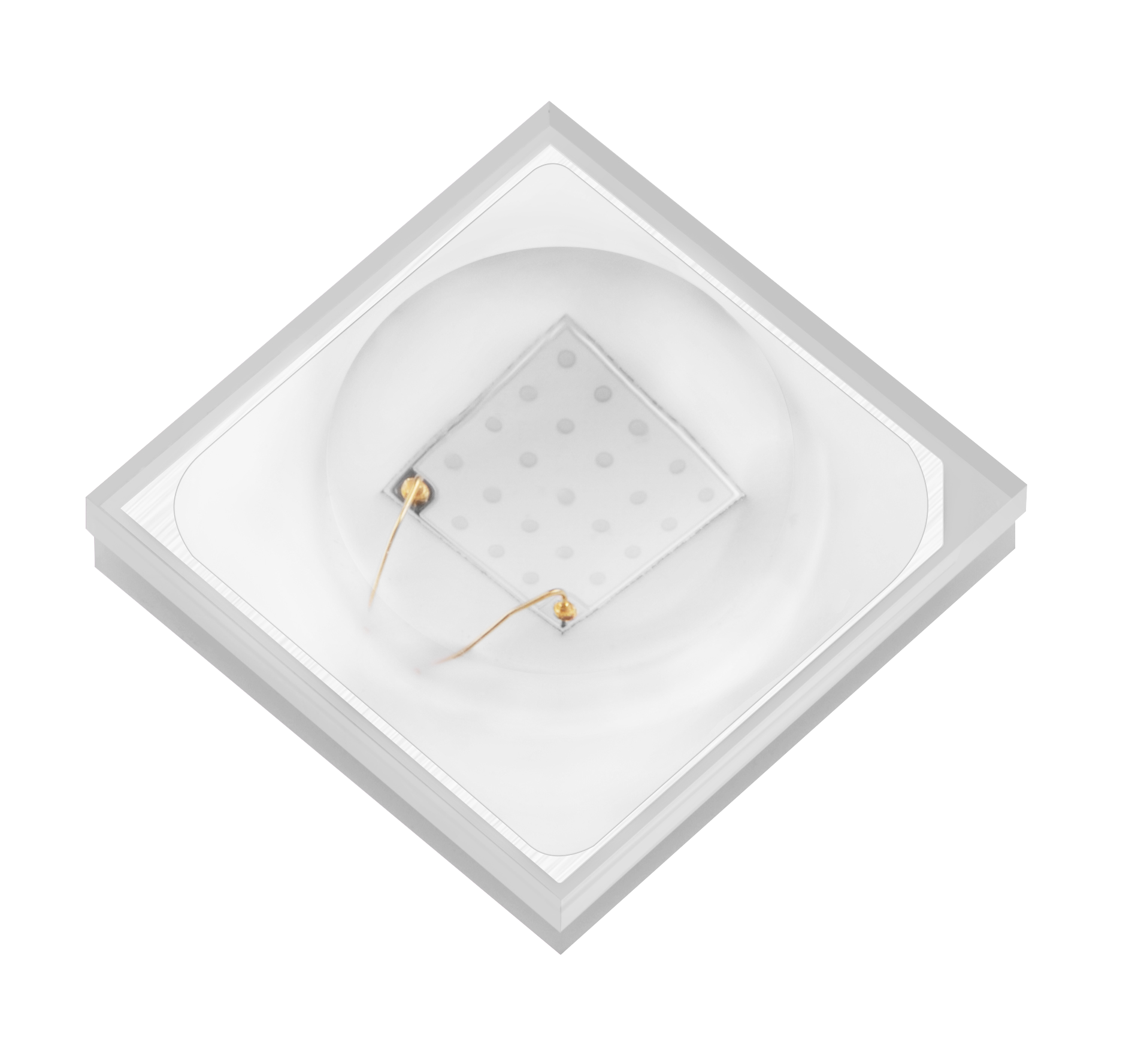

SST-10-B Blue (450 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 510 - 670 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-20-B Blue (450 nm) SMT
3.45 mm x 3.45 mm		 3.0 A 630 - 830 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-10-SB Sky Blue (470 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 470 - 590 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-10-G Green (527 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 190 - 350 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-10-R Red (621 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 230 - 390 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-10-DR Deep Red (660 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 270 - 430 mW (0.35 A) Ecosystem
Datasheet 		Active
SST-20-DR Gen 2 Deep Red (660 nm) SMT
3.45 mm x 3.45 mm		 2.0 A 870 - 1070 mW (0.70 A) Ecosystem
Datasheet 		Active
SST-20-DR Gen 3 Deep Red (660 nm) SMT
3.45 mm x 3.45 mm		 2.0 A 990 - 1110 mW (0.70 A) Ecosystem
Datasheet 		Active
SST-10-FR Far Red (730 nm) SMT
3.45 mm x 3.45 mm		 1.5 A 270 - 390 mW (0.35 A) Ecosystem
Datasheet 		Active
SFT-14-RA Red-Amber (613nm) EMC 3.5 mm x 3.5 mm SMT 5.6 A 125 - 200 lm (0.98A) Datasheet New Product
SFT-14-CG Phosphor Converted Green (555nm) 8.4 A 425 - 580 lm (0.98A) Datasheet
SFT-14-B Display Blue (459nm) 8.4 A 1.05- 1.50 W (0.98A) Datasheet
SFT-14-BP Blue Pump (448nm) 8.4 A 1.05 - 1.90 W (0.98A)
SFM-06X-RAB Red-Amber (613nm) & Display Blue (455nm) EMC 3.0 mm x 3.0 mm SMT 1.5A 50 - 90 lm Red-Amber (500mA)
650 - 900 mW Blue (500mA)		 Datasheet Active
SFM-03X-RAB Red-Amber (614nm) & Display Blue (456nm) EMC 3.0 mm x 3.0 mm SMT 1.4 A RA
2.0 A Blue		 30 - 50 lm Red-Amber (250mA)
300 - 350 mW Blue (250mA)		 Datasheet New Product
SFT-03X-CG Phosphor Converted Green (555nm) 2.0 A 85 - 135 lm (250mA) Datasheet
SFT-10-RA Red-Amber (613nm) EMC 3.5 mm x 3.5 mm SMT 4 A 90 - 145 lm (0.7A) Datasheet Active
SFT-10-CG Phosphor Converted Green (555nm) 5 A 285 - 380 lm (0.7A) Datasheet
SFT-10-B Display Blue (455nm) 5 A 0.75 - 1.15 W (0.7A) Datasheet
SFT-10-BP Blue Pump (448nm) 5 A 0.75 - 1.35 W (0.7A) Datasheet
SFT-20-RA Red-Amber (613nm) EMC 3.5 mm x 3.5 mm SMT 8 A 180 - 285 lm (1.4A) Datasheet Not recommended for new design
SFT-20-CG Phosphor Converted Green (555nm) 10 A 430 - 820 lm (1.4A) Datasheet
SFT-20-B Display Blue (455nm) 10 A 1.4 - 2.3 W (1.4A) Datasheet
SFT-20-BP Blue Pump (448nm) 10 A 1.4 - 2.75 W (1.4A) Datasheet
SBT-90-R Red (620 nm) F75
10.00 mm x 11.00 mm SMT		 13.5 A 770 - 1850 lm (13.5 A) Ecosystem
Datasheet
Binning and Labeling 		Active
MP-2835-1100-DR Deep Red (660nm peak) 2.8 x 3.5 mm 2.0 V 60 mA 63 mW Datasheet
MP-2835-1100-FR Far Red (730nm peak) 2.8 x 3.5 mm 1.9 V 60 mA 45 mW Datasheet
MP-2835-1100-PG Phosphor Green (510-525nm dominant) 2.8 x 3.5 mm 2.8 V 60 mA 100 mW Datasheet
MP-2835-1200-B Blue (460nm dominant) 2.8 x 3.5 mm 2.8 V 60 mA 115 mW Datasheet

DESIGN FILES

PRODUCT MECHANICAL MODEL ASAP LightTools TracePro Zemax
SBT-90-R SBT-90-R_Mech
(812.8 KB) 		SBT-90-R_ASAP
(133.5 MB) 		SBT-90-R_LT
(167.8 MB) 		SBT-90-R_TP
(24.4 MB) 		SBT-90-R_Zx
(133.4 MB)
SFM-03X-RAB SFM-03X-RAB_Mech
(108.4 KB) 		SFM-03X-RAB_ASAP
(263.3 MB) 		SFM-03X-RAB_LT
(275.2 MB) 		SFM-03X-RAB_TP
(270.8 MB) 		SFM-03X-RAB_Zx
(275.5 MB)
SFM-06X-RAB SFM-06X-RAB_Mech
(139.3 KB) 		SFM-06X-RAB_ASAP
(264.2 MB) 		SFM-06X-RAB_LT
(264.2 MB) 		SFM-06X-RAB_TP
(264.2 MB) 		SFM-06X-RAB_Zx
(264.2 MB)
SFT-03X-CG SFT-03X-CG_Mech
(37.7 KB) 		SFT-03X-CG_ASAP
(134.3 MB) 		SFT-03X-CG_LT
(146.6 MB) 		SFT-03X-CG_TP
(138 MB) 		SFT-03X-CG_Zx
(142.3 MB)
SFT-10-B SFT-10-B_Mech
(34 KB) 		SFT-10-B_ASAP
(132.7 MB) 		SFT-10-B_LT
(138.2 MB) 		SFT-10-B_TP
(136 MB) 		SFT-10-B_Zx
(138.3 MB)
SFT-10-CG SFT-10-CG_Mech
(29.6 KB) 		SFT-10-CG_ASAP
(132.6 MB) 		SFT-10-CG_LT
(140.5 MB) 		SFT-10-CG_TP
(136.1 MB) 		SFT-10-CG_Zx
(140.7 MB)
SFT-10-RA SFT-10-RA_Mech
(34.2 KB) 		SFT-10-RA_ASAP
(132.8 MB) 		SFT-10-RA_LT
(138.5 MB) 		SFT-10-RA_TP
(136 MB) 		SFT-10-RA_Zx
(138.5 MB)
SFT-14-B SFT-14-B_Mech
(94.8 KB) 		SFT-14-B_ASAP
(132.7 MB) 		SFT-14-B_LT
(138.7 MB) 		SFT-14-B_TP
(136.4 MB) 		SFT-14-B_Zx
(N/A)
SFT-14-BP SFT-14-BP_Mech
(94.8 KB) 		SFT-14-BP_ASAP
(132.3 MB) 		SFT-14-BP_LT
(138.8 MB) 		SFT-14-BP_TP
(136.6 MB) 		SFT-14-BP_Zx
(N/A)
SFT-14-CG SFT-14-CG_Mech
(7.2 KB) 		SFT-14-CG_ASAP
(132.3 MB) 		SFT-14-CG_LT
(140.6 MB) 		SFT-14-CG_TP
(136.2 MB) 		SFT-14-CG_Zx
(N/A)
SFT-14-RA SFT-14-RA_Mech
(126.1 KB) 		SFT-14-RA_ASAP
(132.8 MB) 		SFT-14-RA_LT
(138.7 MB) 		SFT-14-RA_TP
(136.2 MB) 		SFT-14-RA_Zx
(N/A)
SFT-20-B SFT-20-B_Mech
(50.9 KB) 		SFT-20-B_ASAP
(134.3 MB) 		SFT-20-B_LT
(134.3 MB) 		SFT-20-B_TP
(134.3 MB) 		SFT-20-B_Zx
(134.3 MB)
SFT-20-CG SFT-20-CG_Mech
(11.3 KB) 		SFT-20-CG_ASAP
(134.4 MB) 		SFT-20-CG_LT
(134.4 MB) 		SFT-20-CG_TP
(134.4 MB) 		SFT-20-CG_Zx
(134.4 MB)
SFT-20-RA SFT-20-RA_Mech
(61.4 KB) 		SFT-20-RA_ASAP
(134.6 MB) 		SFT-20-RA_LT
(134.6 MB) 		SFT-20-RA_TP
(134.6 MB) 		SFT-20-RA_Zx
(134.6 MB)
SST-10-B-B130 SST-10-B-B130_Mech
(176.1 KB) 		SST-10-B-B130_ASAP
(134 MB) 		SST-10-B-B130_LT
(133.9 MB) 		SST-10-B-B130_TP
(167.2 MB) 		SST-10-B-B130_Zx
(133.9 MB)
SST-10-B-B90 SST-10-B-B90_Mech
(66.4 KB) 		SST-10-B-B90_ASAP
(134.5 MB) 		SST-10-B-B90_LT
(134.4 MB) 		SST-10-B-B90_TP
(168.9 MB) 		SST-10-B-B90_Zx
(134.4 MB)
SST-10-DR-B130 SST-10-DR-B130_Mech
(176.1 KB) 		SST-10-DR-B130_ASAP
(134.1 MB) 		SST-10-DR-B130_LT
(134.1 MB) 		SST-10-DR-B130_TP
(170.2 MB) 		SST-10-DR-B130_Zx
(134.1 MB)
SST-10-DR-B90 SST-10-DR-B90_Mech
(66.4 KB) 		SST-10-DR-B90_ASAP
(134.8 MB) 		SST-10-DR-B90_LT
(134.7 MB) 		SST-10-DR-B90_TP
(171.4 MB) 		SST-10-DR-B90_Zx
(134.7 MB)
SST-10-FR-B130 SST-10-FR-B130_Mech
(176.1 KB) 		SST-10-FR-B130_ASAP
(134.1 MB) 		SST-10-FR-B130_LT
(134 MB) 		SST-10-FR-B130_TP
(170 MB) 		SST-10-FR-B130_Zx
(134 MB)
SST-10-FR-B90 SST-10-FR-B90_Mech
(66.4 KB) 		SST-10-FR-B90_ASAP
(134.6 MB) 		SST-10-FR-B90_LT
(134.5 MB) 		SST-10-FR-B90_TP
(171.1 MB) 		SST-10-FR-B90_Zx
(134.5 MB)
SST-10-G-B130 SST-10-G-B130_Mech
(176.1 KB) 		SST-10-G-B130_ASAP
(134 MB) 		SST-10-G-B130_LT
(134 MB) 		SST-10-G-B130_TP
(171 MB) 		SST-10-G-B130_Zx
(134 MB)
SST-10-G-B90 SST-10-G-B90_Mech
(66.4 KB) 		SST-10-G-B90_ASAP
(134.5 MB) 		SST-10-G-B90_LT
(134.5 MB) 		SST-10-G-B90_TP
(172.8 MB) 		SST-10-G-B90_Zx
(134.5 MB)
SST-10-R-B130 SST-10-R-B130_Mech
(176.1 KB) 		SST-10-R-B130_ASAP
(134.1 MB) 		SST-10-R-B130_LT
(134.1 MB) 		SST-10-R-B130_TP
(173.9 MB) 		SST-10-R-B130_Zx
(134.1 MB)
SST-10-R-B90 SST-10-R-B90_Mech
(66.4 KB) 		SST-10-R-B90_ASAP
(134.8 MB) 		SST-10-R-B90_LT
(134.8 MB) 		SST-10-R-B90_TP
(175.1 MB) 		SST-10-R-B90_Zx
(134.8 MB)
SST-10-SB-B130 SST-10-SB-B130_Mech
(176.1 KB) 		SST-10-SB-B130_ASAP
(134 MB) 		SST-10-SB-B130_LT
(134 MB) 		SST-10-SB-B130_TP
(171 MB) 		SST-10-SB-B130_Zx
(134 MB)
SST-10-SB-B90 SST-10-SB-B90_Mech
(66.4 KB) 		SST-10-SB-B90_ASAP
(134.5 MB) 		SST-10-SB-B90_LT
(134.5 MB) 		SST-10-SB-B90_TP
(172.8 MB) 		SST-10-SB-B90_Zx
(134.5 MB)
SST-20-DR SST-20-DR_Mech
(Contact Support) 		SST-20-DR_ASAP
(N/A) 		SST-20-DR_LT
(138.2 MB) 		SST-20-DR_TP
(135.9 MB) 		SST-20-DR_Zx
(138.3 MB)
SST-20-DR_Gen2 SST-20-DR_Gen2_Mech
(274.1 KB) 		SST-20-DR_Gen2_ASAP
(N/A) 		SST-20-DR_Gen2_LT
(138.2 MB) 		SST-20-DR_Gen2_TP
(135.9 MB) 		SST-20-DR_Gen2_Zx
(138.3 MB)

Application Notes

GENERAL LIGHTING
Electrical Stress Damage to LEDs and How to Prevent It (APN-002815)
Design Guidelines and Ecosystems for Luminus COB Arrays (APN-002319)
General Handling and Soldering Notes for Luminus COB Arrays (APN-002320)
Luminus ECOSystem Optical Data Sheet (APN-002531)
Soldering and Handling of Luminus Cube Surface Mount Devices (APN-002577)
Measurement and Design Considerations for Luminus Cube Surface Mount Devices (APN-002576)
Guidelines for Luminus Dynamic COBs - Warm Dimming and Tunable White (APN-002807)
SPECIALTY LIGHTING
UVC LEDs for Disinfection and Sterilization (APN-002805)
Design Guidelines for SFT Chipsets Assembly (APN-002804)
Soldering and Handling of Surface Mount Devices (APN-001473)
Thermal Management of Big Chip LEDs (APN-001443)
Testing Big Chip LEDs (APN-001843)
Thermal Cross-Talk in Multi-Chip LED Packages (APN-002127)
